Description
Summary

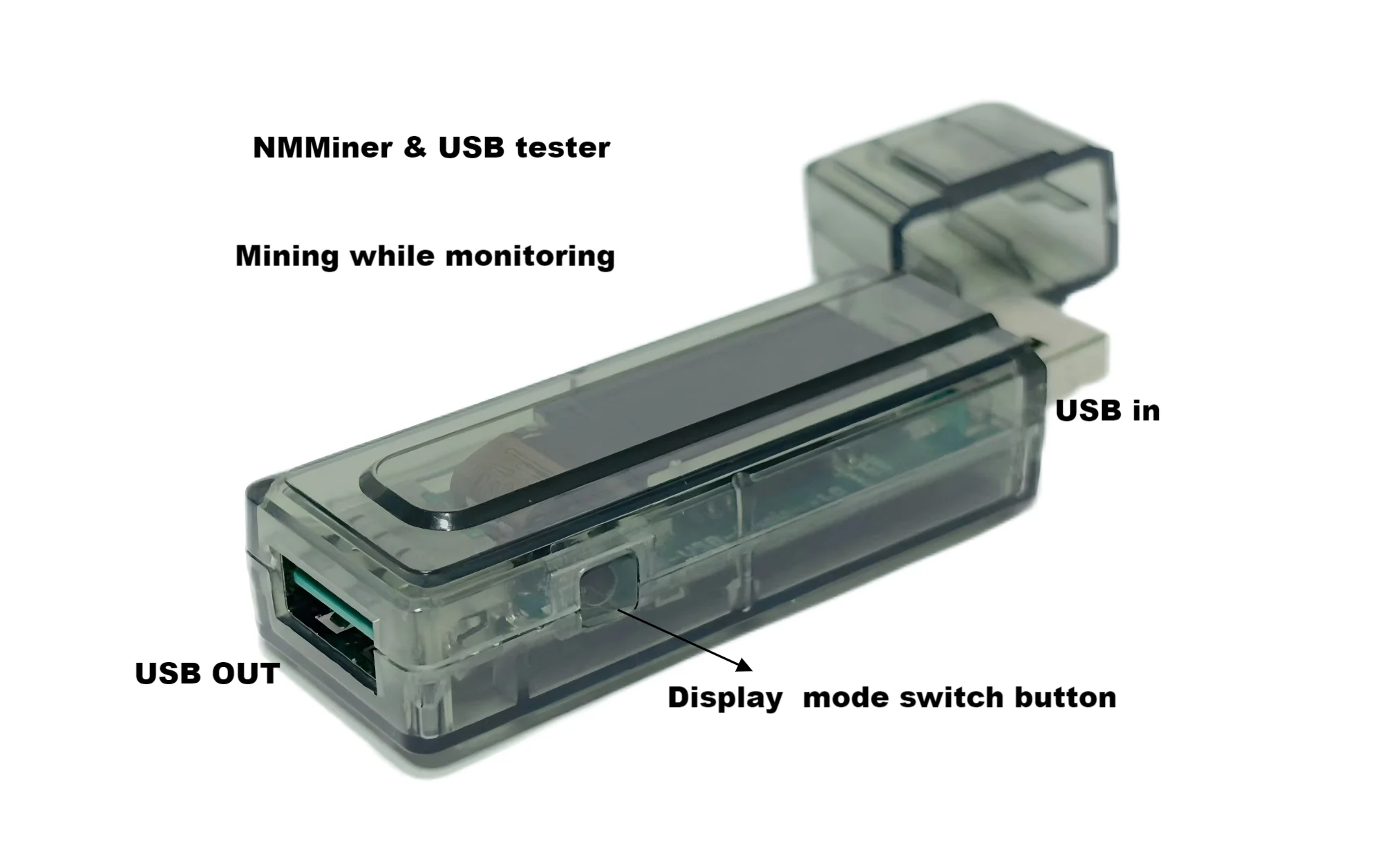

The NM-usb-chain is a NMMiner Offical development board. At first glance, you may think it’s just an ordinary ammeter, but in fact it’s also a lottery ticket. It can not only provice the precise current measurement, but also achieve the same high Hashrate 117KH/s as other ESP32-S3 devices. Most importantly, the nm-usb-chain includes a male USB-A port and a female USB-A port. Multiple usb-chains can be connected in series to form a lottery chain, which is really interesting. Of course, this is not all of the nm-usb-chain functions. With the usb-chain device, you can do that:
-
Daily work and life current monitoring.
-
Lottery when charging your phone.
-

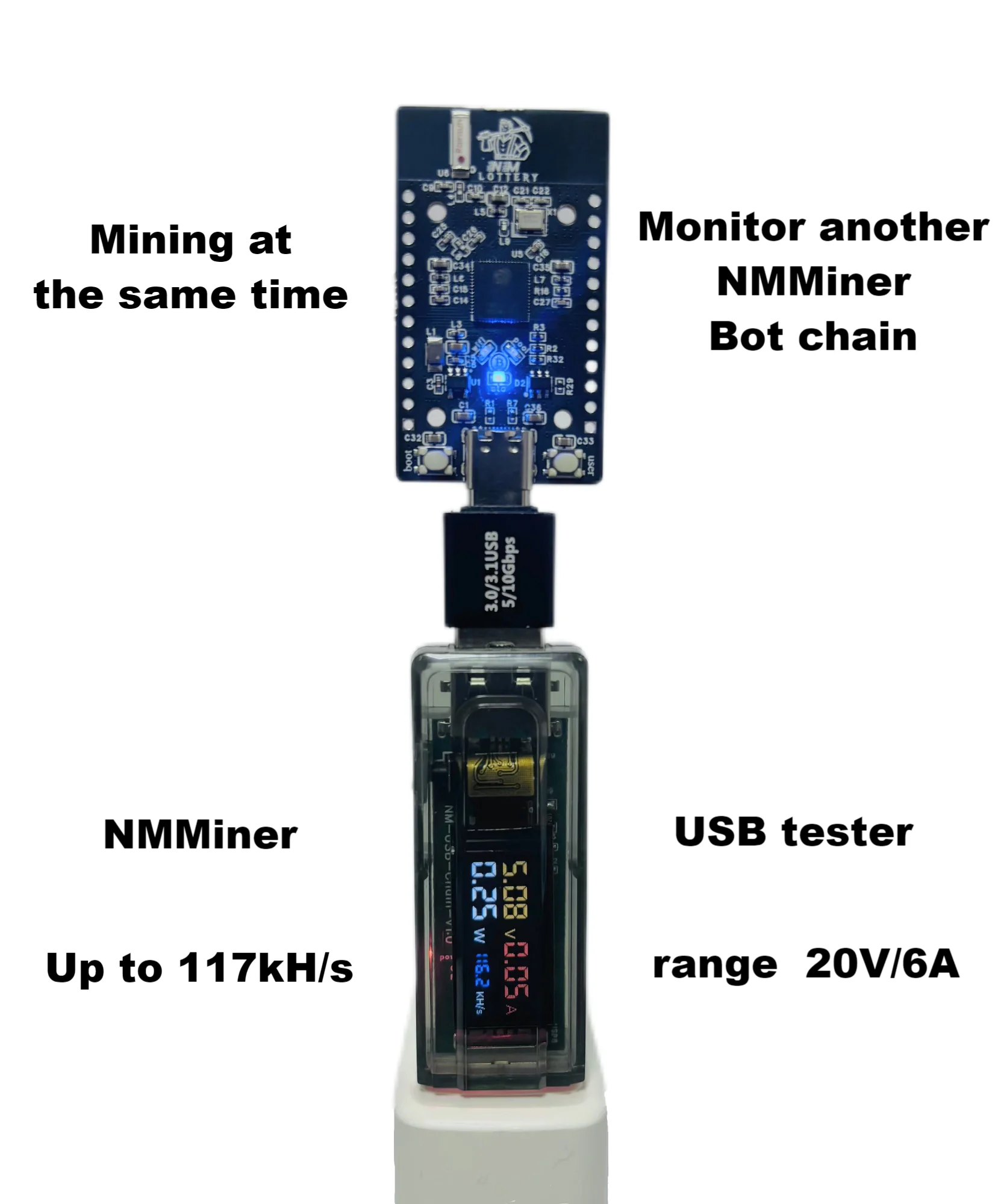

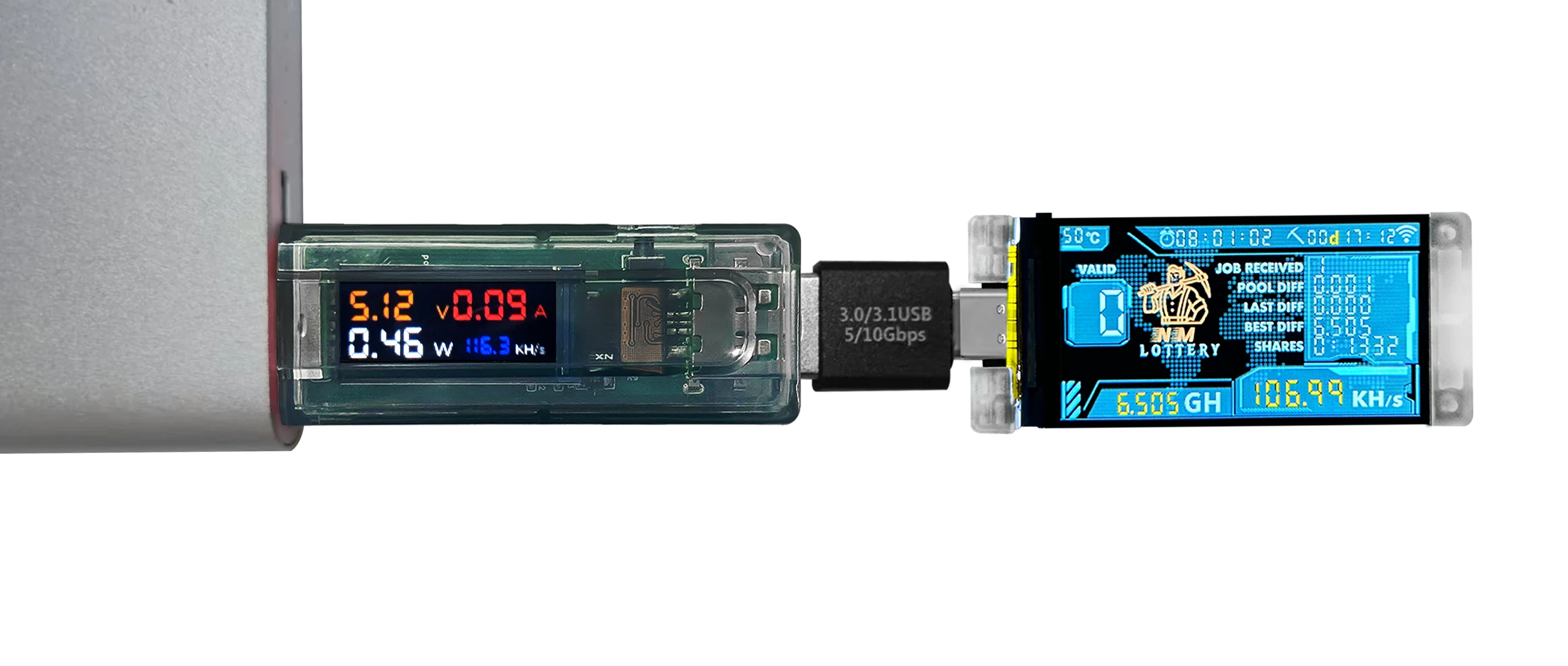

Double your lottery device hashrate without any power supply device added. Such as usb-chain + T190, usb-chain + LILYGO T Dongle S3, etc.
Product Highlights
-
Specially optimized algorithm firmware enhances the arithmetic power to 117KH/s, increasing the probability of winning the lottery by 60%.
-
The display will turn off after 1 minute without operation, and you can wake up the screen by pressing any key to avoid light pollution.
-
The system supports SSL secure connection if the pool supports it.
-
We offer long-term support for our services.
-

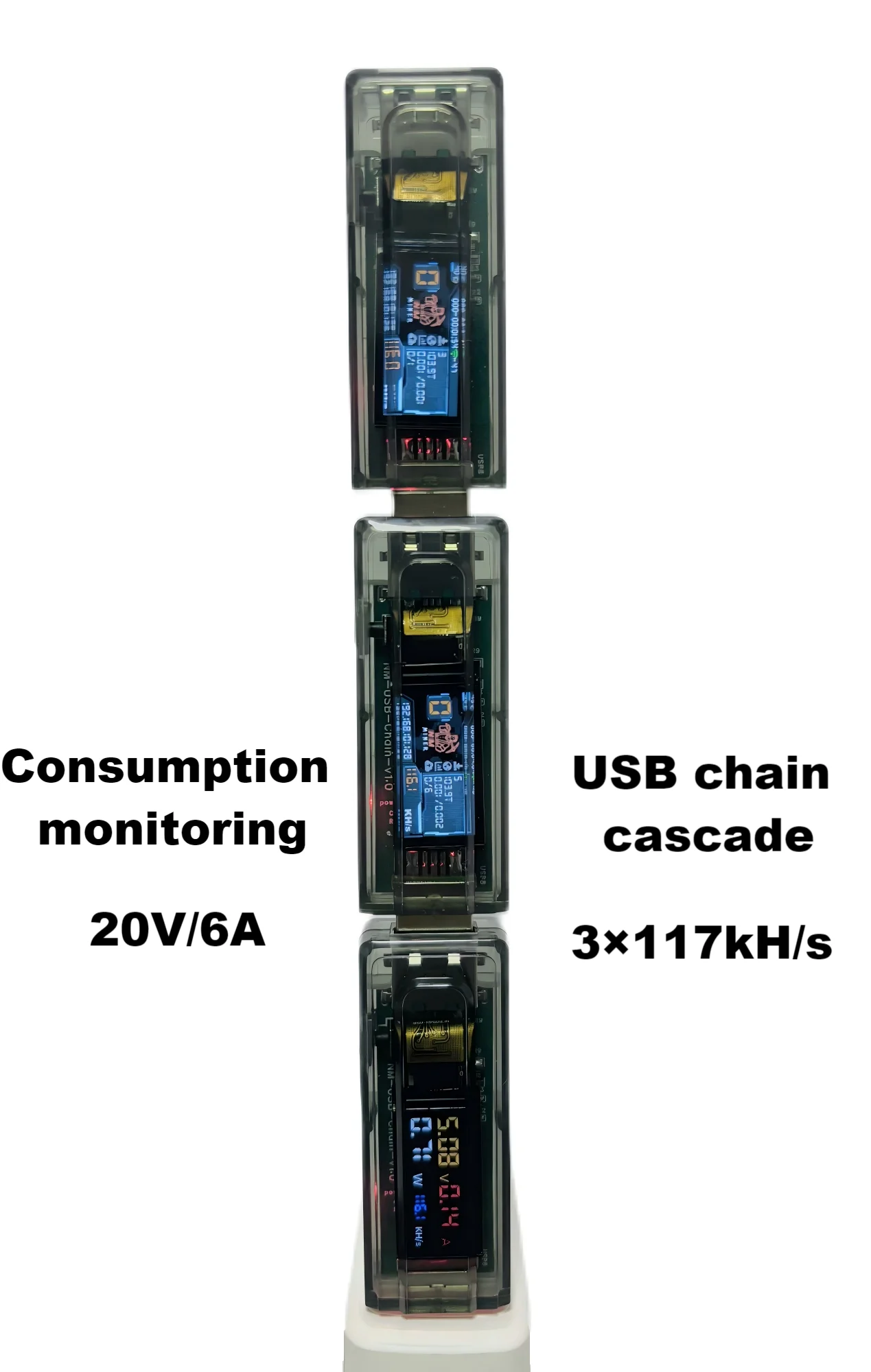

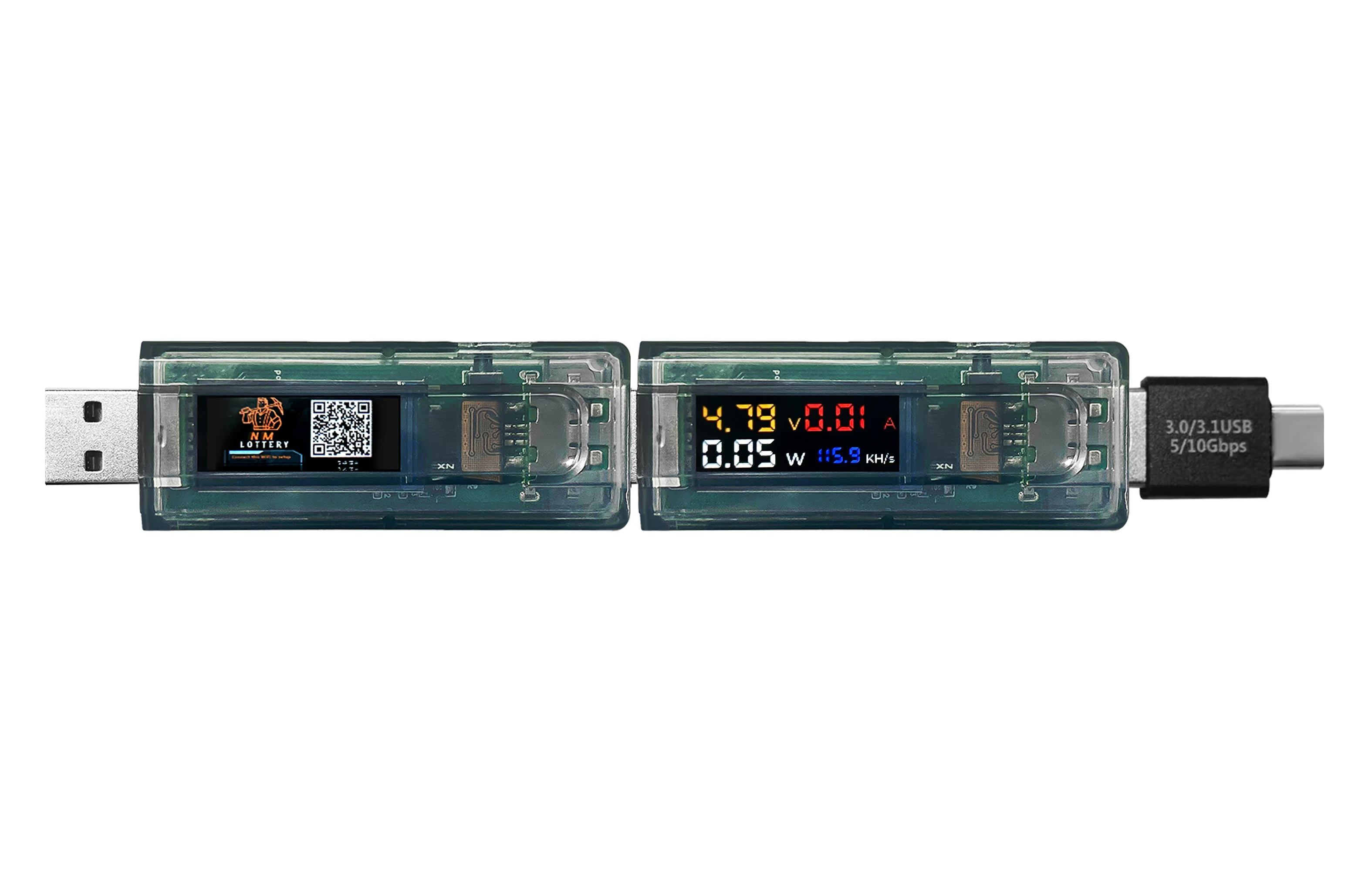

The NM-usb-chain can form a lottery chain one by one with USB-A, Only one power supply.
-
Double your lottery device hashrate without any power supply device added.
-

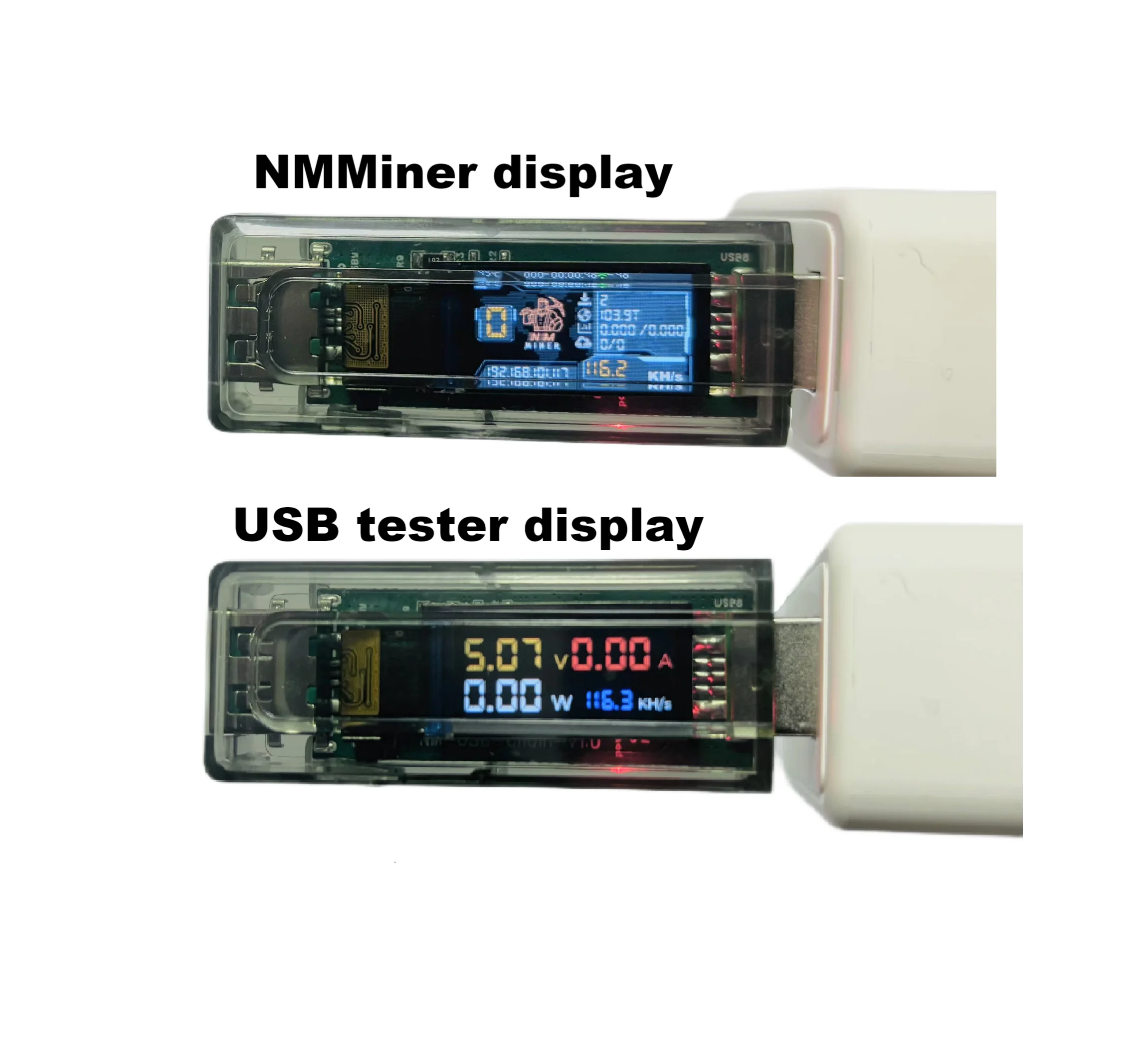

With High precision ammeter function, working with Lottery.
-
Github Project: https://github.com/NMminer1024/NMMiner
-
If you want to upgrade the firmware, just use the NMFlash Web: https://flash.nmminer.com/
Better Performance
The hashrate from the Solo Lottery Public-pool:
Main Features
-
-
Specially ESP32-S3R8 MCU, support Wi-Fi and BLE.
-
Optimized Software that achieves a higher Harshrate of 117KH/s.
-
Computing Power increases by 60% more than other boards from rivals, which means 60% more chances of winning.
-
Standalone: can work as a BTC lottery miner directly over WiFi.
-
No External computer is needed.
-
Embedded: low cost, low maintenance, high availability, high reliability, low power.
-
High precision ammeter, working with Lottery.
-
Versatile: solo/pool mining.
-
ESP32-S3R8 MCU wifi microcontroller on board.
-
Specifications
|
 Parameters |
 Description |
|
Master Chip |
ESP32-S3FN8, Xtensa32 dual-core processor, 240MHz |
|
Wi-Fi |
802.11 b/g/n, up to 150Mbps |
|
Bluetooth |
Bluetooth LE: Bluetooth 5, Bluetooth mesh |
|
Hash Rate |
110~120 KH/s |
|
Memory |
384KB ROM; |
|
Interface |
USB-A male; USB-A female; |
|
Chain |
Chain with other device one by one. |
|
Operating Temperature |
-20 ~ 70 ℃ |
|
Dimensions |
77*23*15mm |
Parking List
The default packing list without selecting any accessories is as follows:
|
Item |
Quantity |
|
NM-USB-Chain |
x1 |
